  • SCA050001W G-W 90° Glass door spring hinge

  • SCA050001W G-W 90° Glass door spring hinge

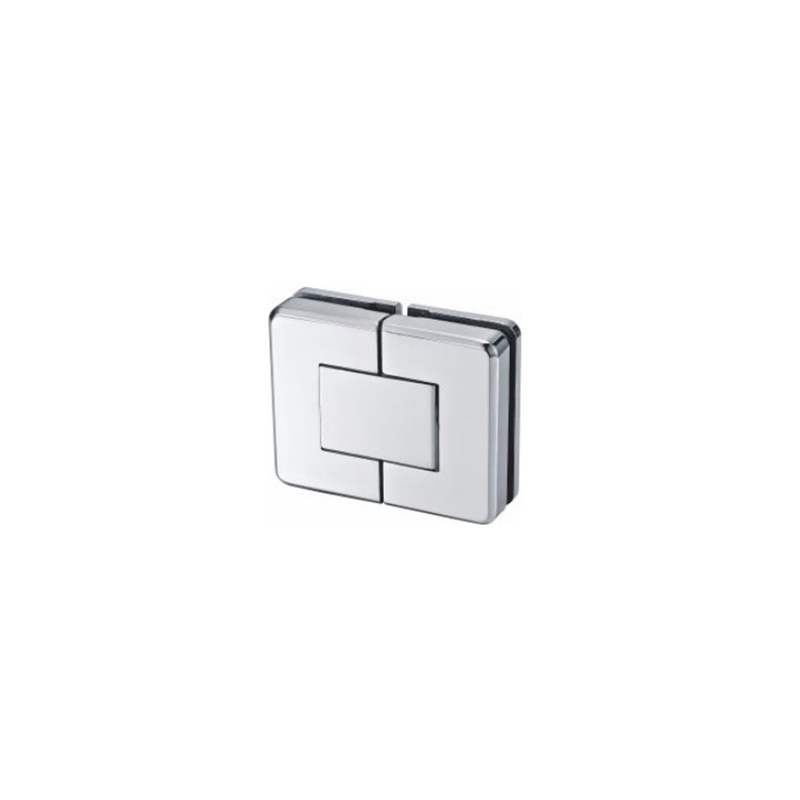

SCA050001W G-W 90° Glass door spring hinge

Typeglass hinge
Applicationbathroom, office, glass door

Glass Thickness

8mm -10mm
Material

Stainless steel 304 /316

Color

SSP / SSS  / ORB black
Max support weight50kg/pair
Max door dimension2200*750mm


Description

Feature & Function:

fully hidden and seamless structure

completely water proof seal strip installation


Technical information

Max Weight

45kg / pair

Max Glass Dimension

2200*750mm

Closing Times

100, 000 cycles

Salt Testing

NSS 120 Hrs / CASS 4 Hrs

Warranty24 Months

Packing Specificatio

each piece in polyfoam bag, 20 pieces/carton, neutral brown carton

SCA050001W G-W 90° Glass door spring hinge
