Feature & Function
Inward & outward openning
The door could be located at 0° & 90°
90° toward inside and outside opening, self-closing when the door stays at 35 Degree
Adjustable position angel between 0-45°
Technical information
| Opening Direction | 90° toward inside & outside | Max. loading | 45kg / 2pcs shower hinge |
| Doorstop Position: | 0° and 90° | Max door width: | height max.2000mm, width 750mm |
| Adjustable function | Yes | Salt spray test | NSS 120 Hrs |
| Self-position | 90° | Durability test | 100, 000 cycles |
| self-closing | starts at 35° to closing position | Warranty | 24 Months |

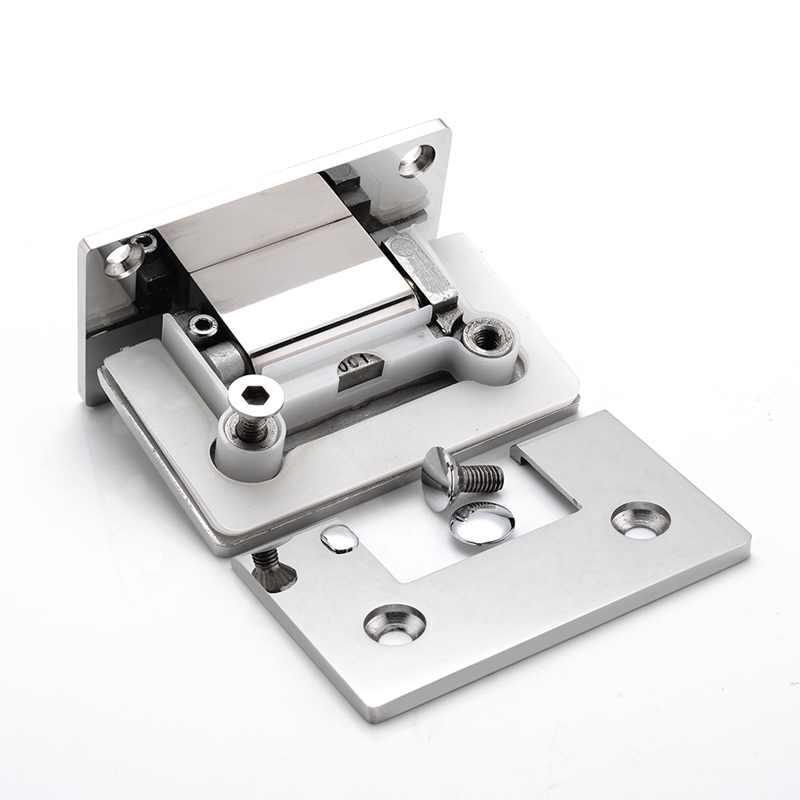

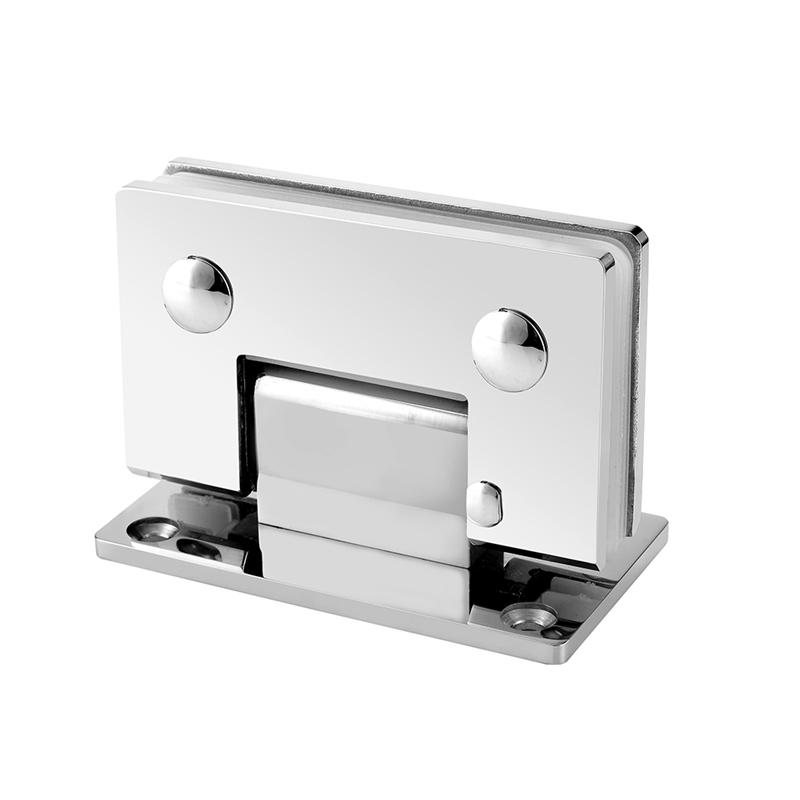

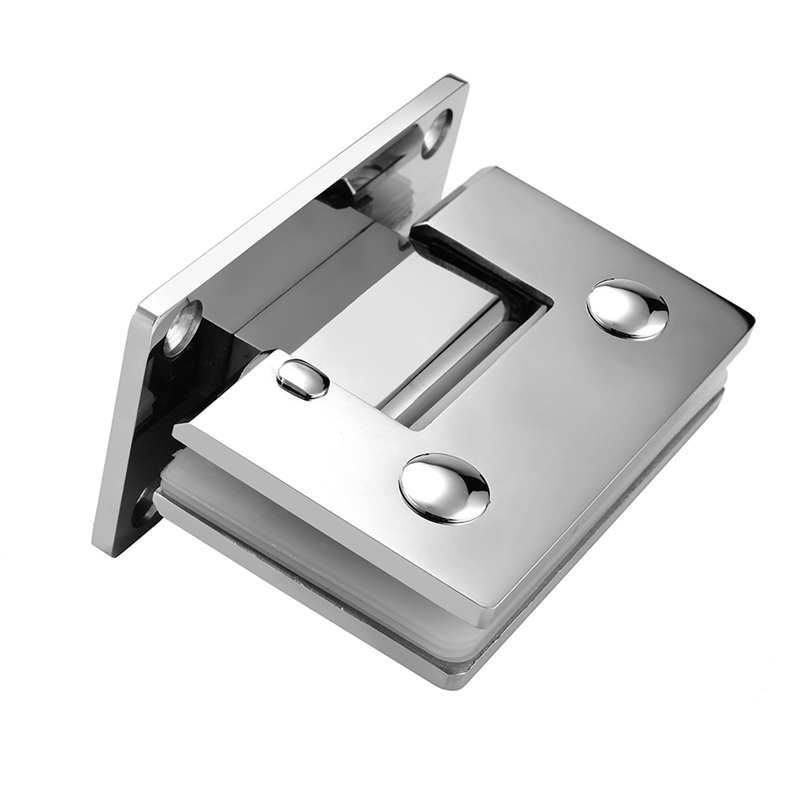

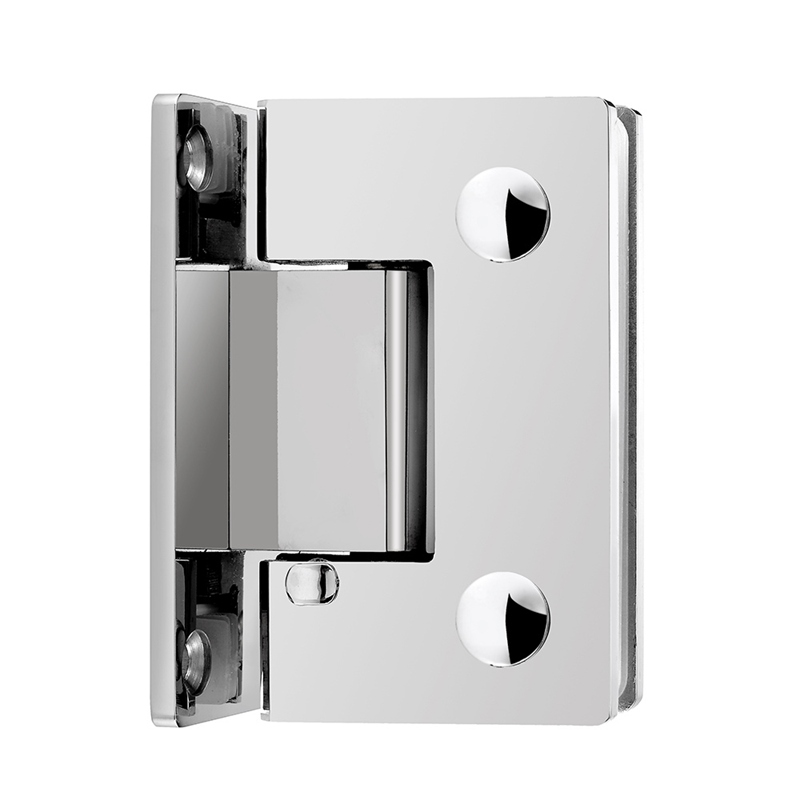

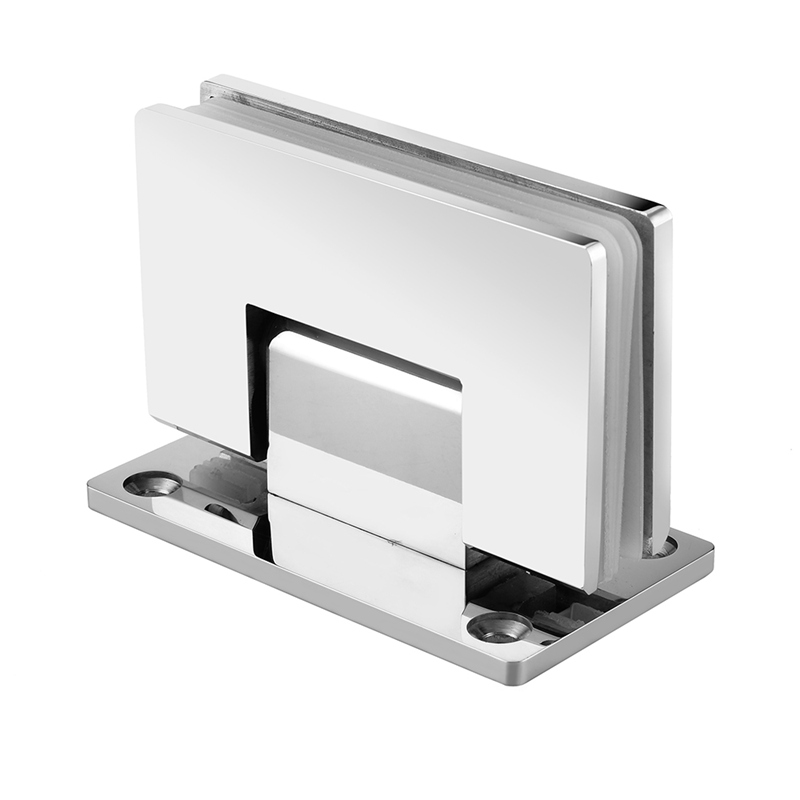

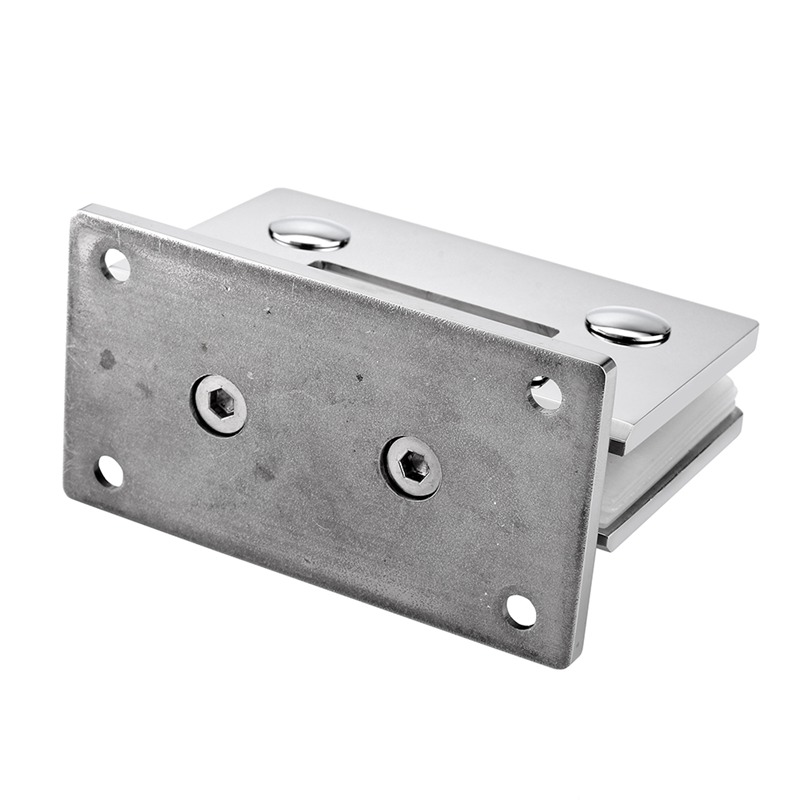

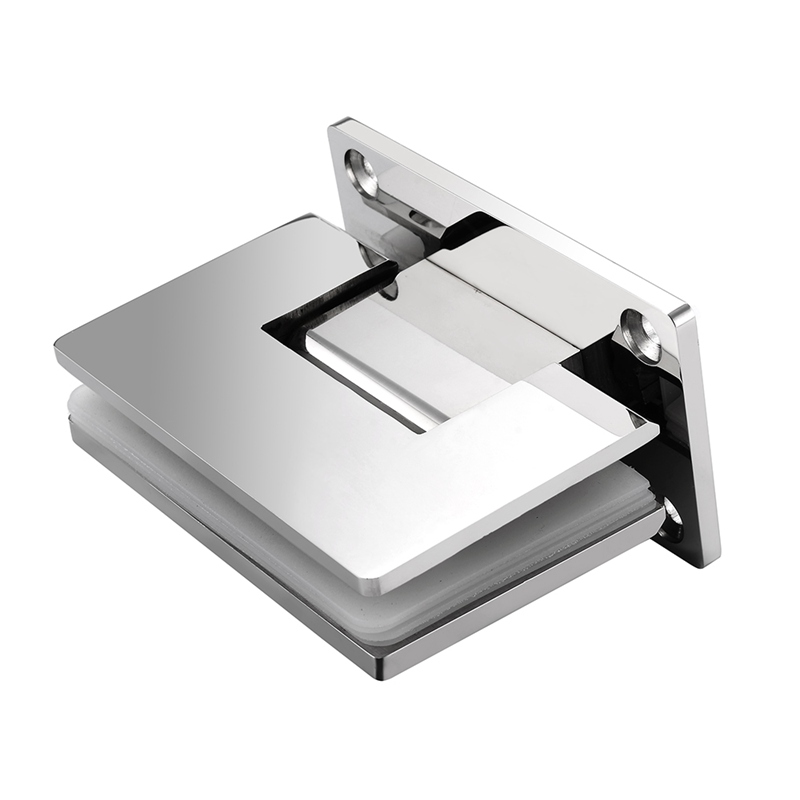

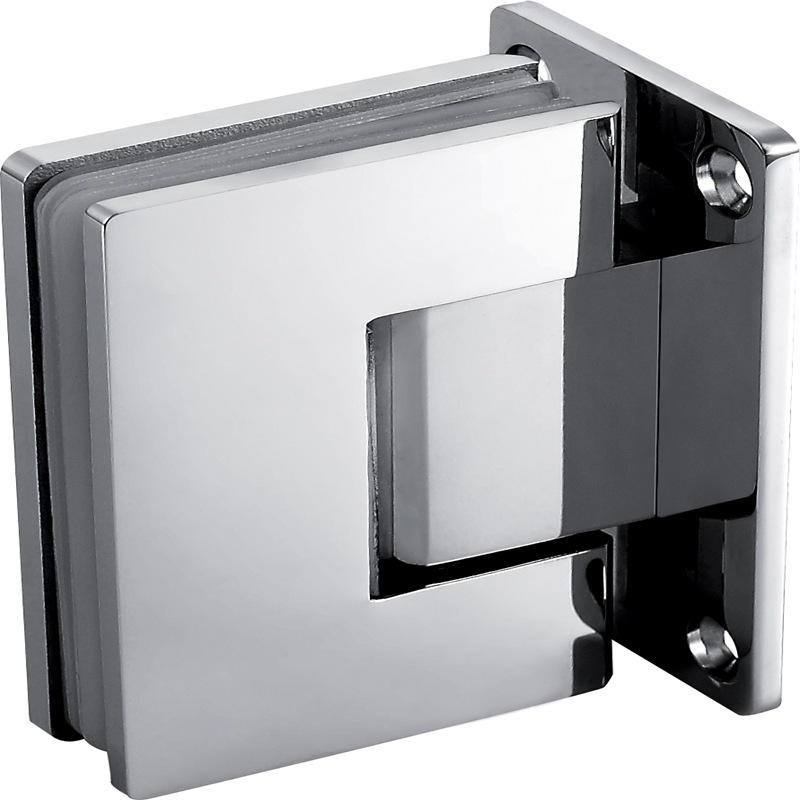

SHA060001S G-W 90° Glass door spring hinge

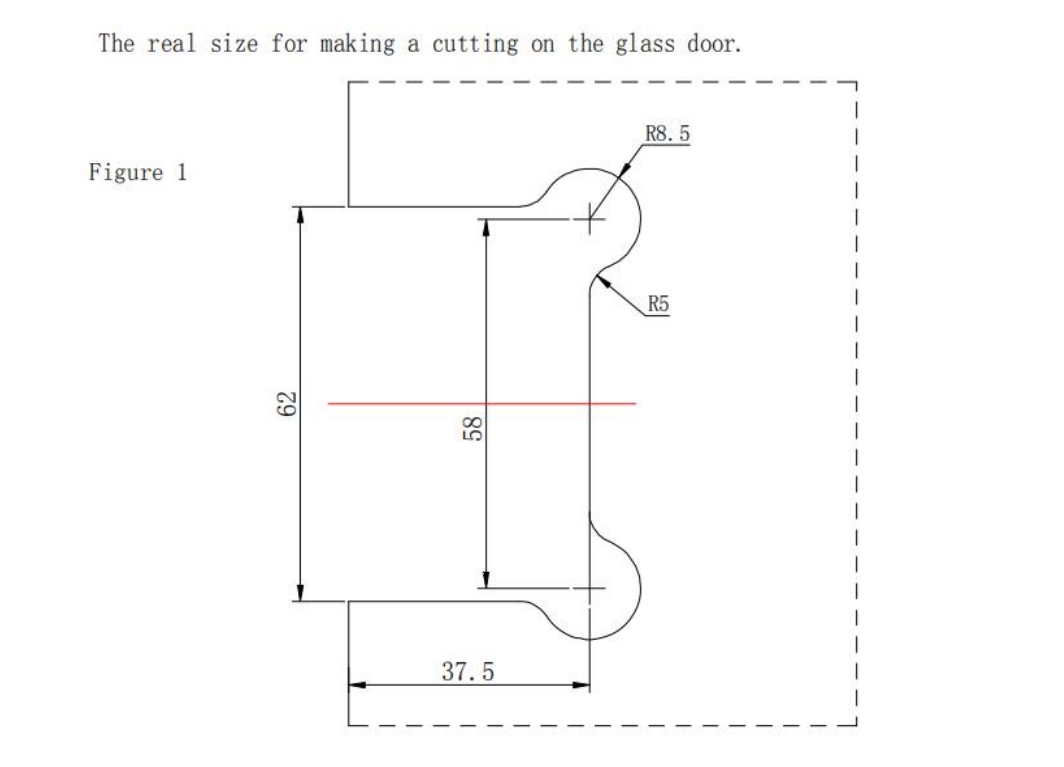

SHA060001S Production Dimension
