Home Bathroom Hardware Bathroom Fittings - Shower Hinge Series SHA21 Series Adjustable Spring Hinge SHA210008 Adjustable Spring Glass Hinge - Eccentric Wall To Glass 135°

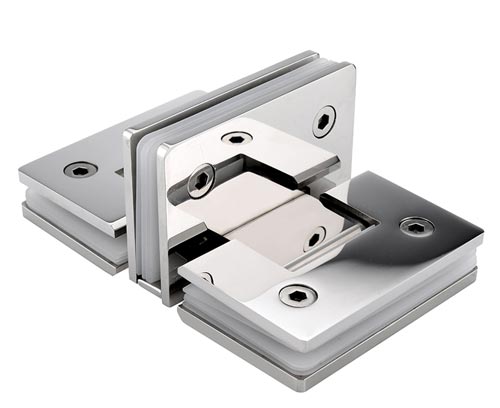

SHA210008 Adjustable Spring Glass Hinge - Eccentric Wall To Glass 135°

Typeglass hinge
Applicationbathroom, office, glass door
For door thickness8mm -12mm
MaterialSUS304/316
Finish①SSP/SSS
Available finishes②ORB / PVD /AB/AC

Description

Feature & Function

Inward & outward openning

The door could be located at 0° & 90°

The door could be automatically closed within 35°

Adjust and fix the closing and opening position


Technical information

Opening Direction90° toward inside & outsideMax. loading45kg / 2pcs shower hinge
Doorstop Position:0° and 90°Max door width:height max.2000mm, width 750mm
Adjustable functionYesSalt spray testNSS 120 Hrs
Self-position90°Durability test100,000 cycles
self-closingstarts at 35° to closing positionWarranty24 Months


SHA210008S G-W Eccentric 135°glass door adjustable hinge

SHA210008 Adjustable Spring Glass Hinge - Eccentric Wall To Glass 135°
