Feature & Function
Fully PVC seal, 100% waterproof
Hole glass cutting, prevent drooping
Freely single position opening, stop at any position
Opening angle: Outward or Inward 90°opening
Technical information
| Opening Direction | 180° toward outside | Max. loading | 45kg / 2pcs shower hinge |
| Doorstop Position: | 0° and 180° | Max door width: | height max.2000mm, width 750mm |
| Adjustable function | No | Salt spray test | NSS 120 Hrs |
| Self-position | 180° | Durability test | 100,000 cycles |
| self-closing | No | Warranty | 24 Months |

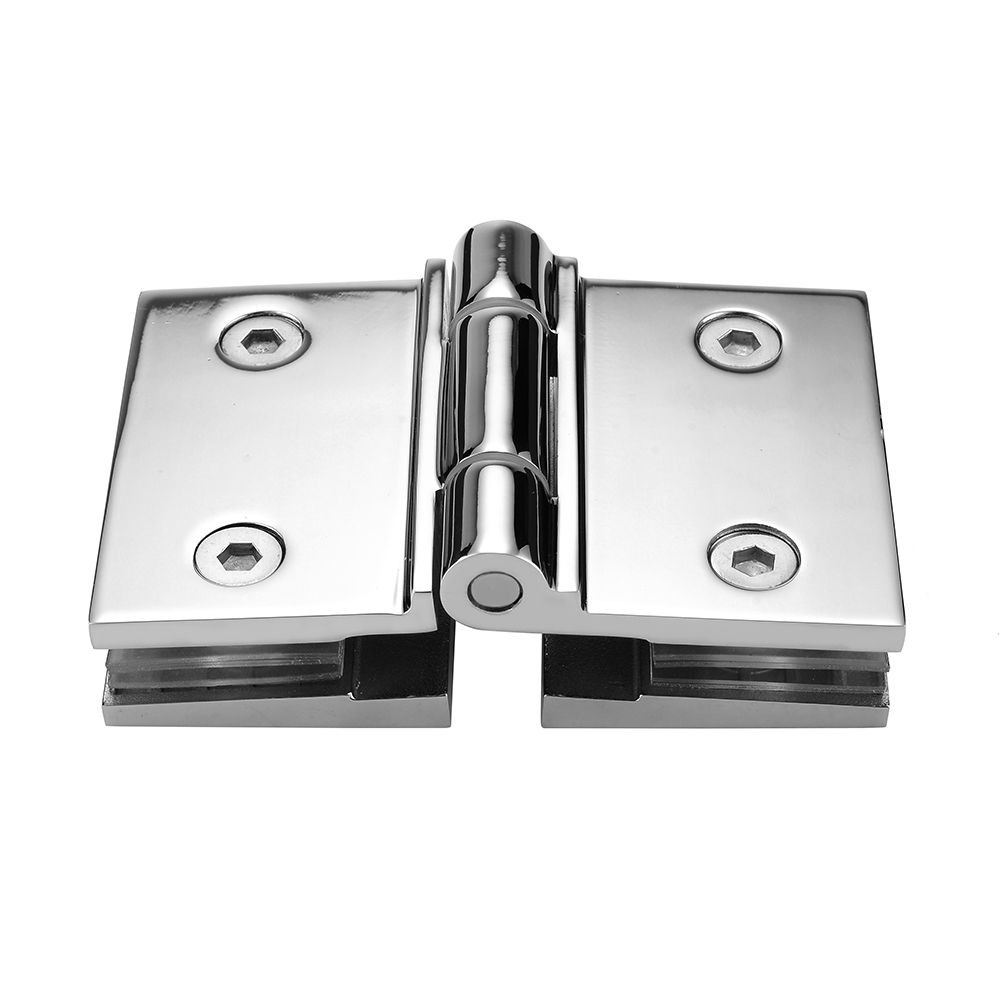

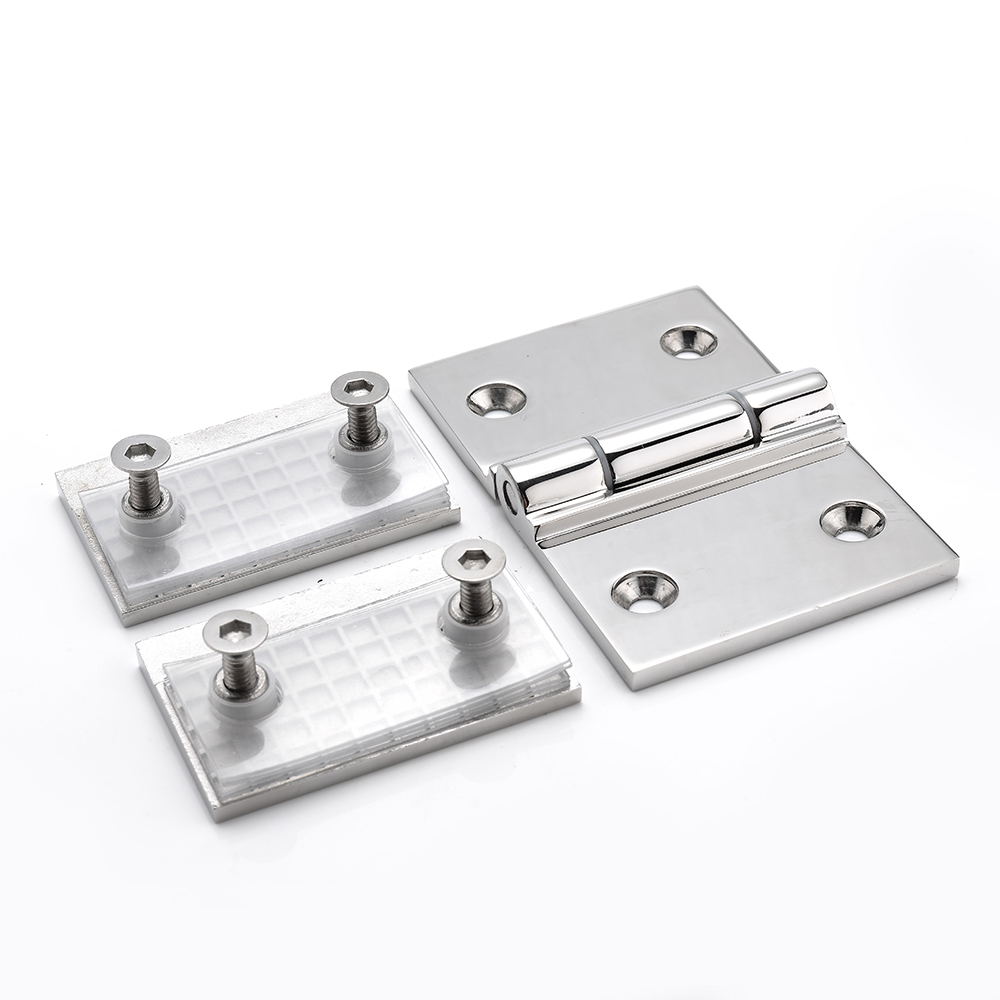

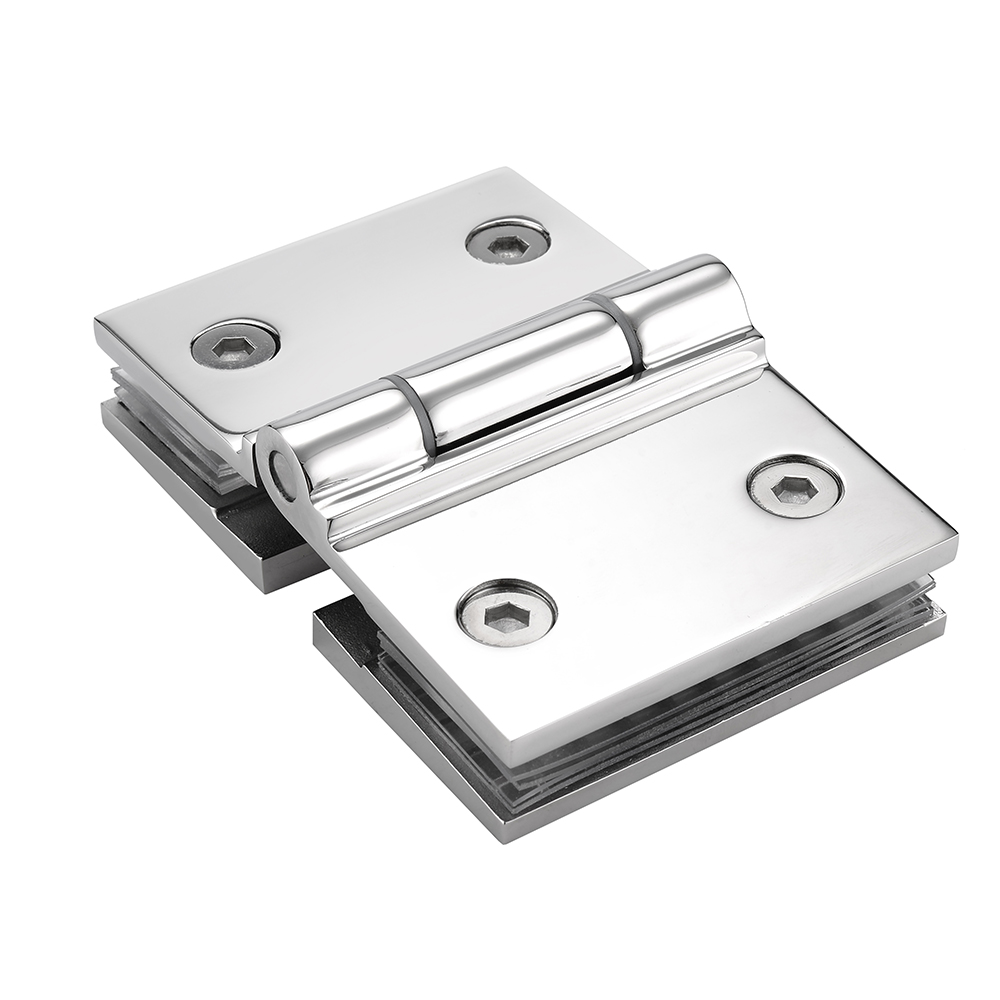

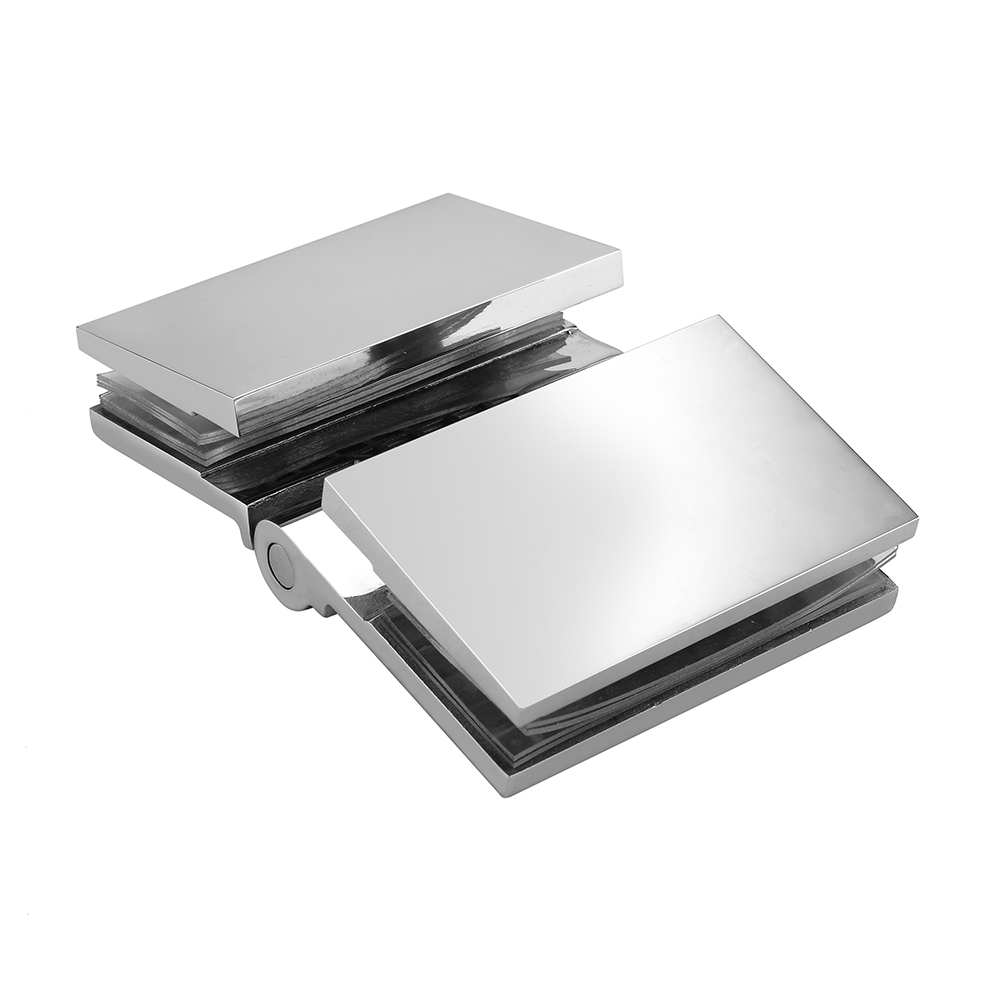

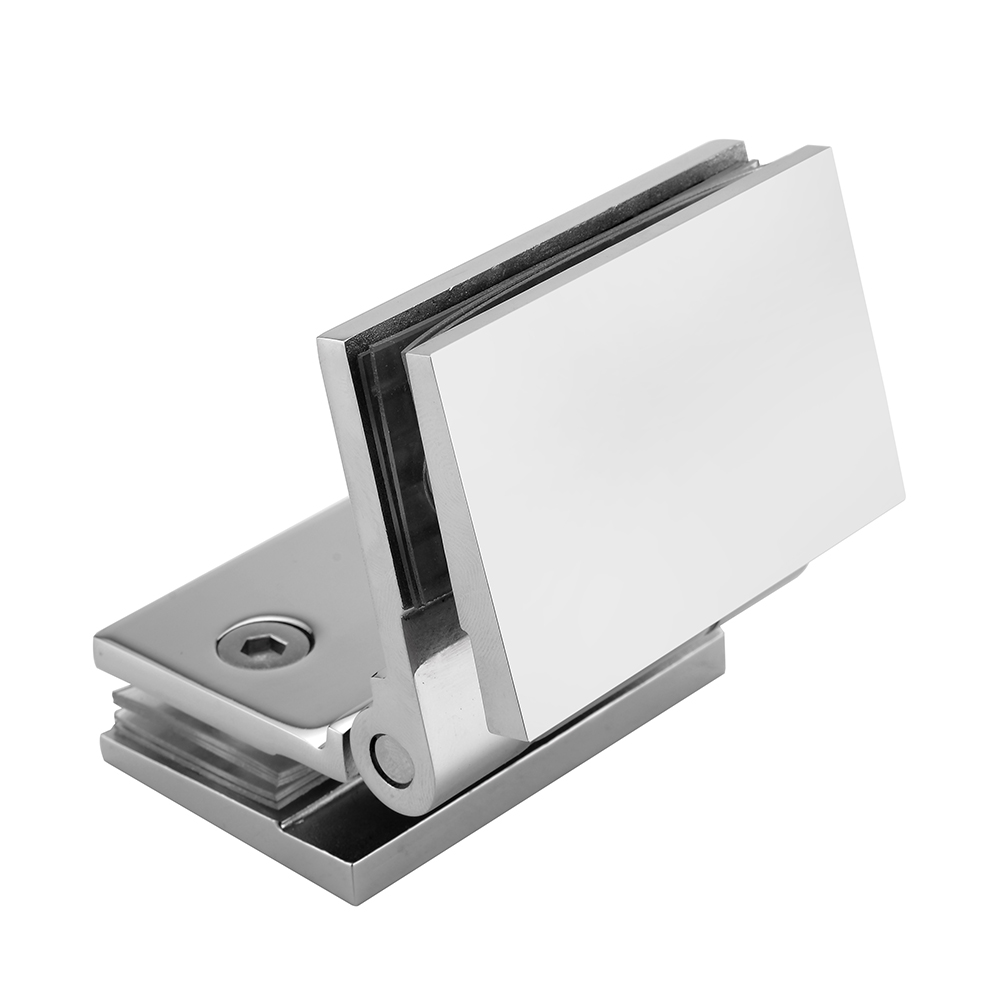

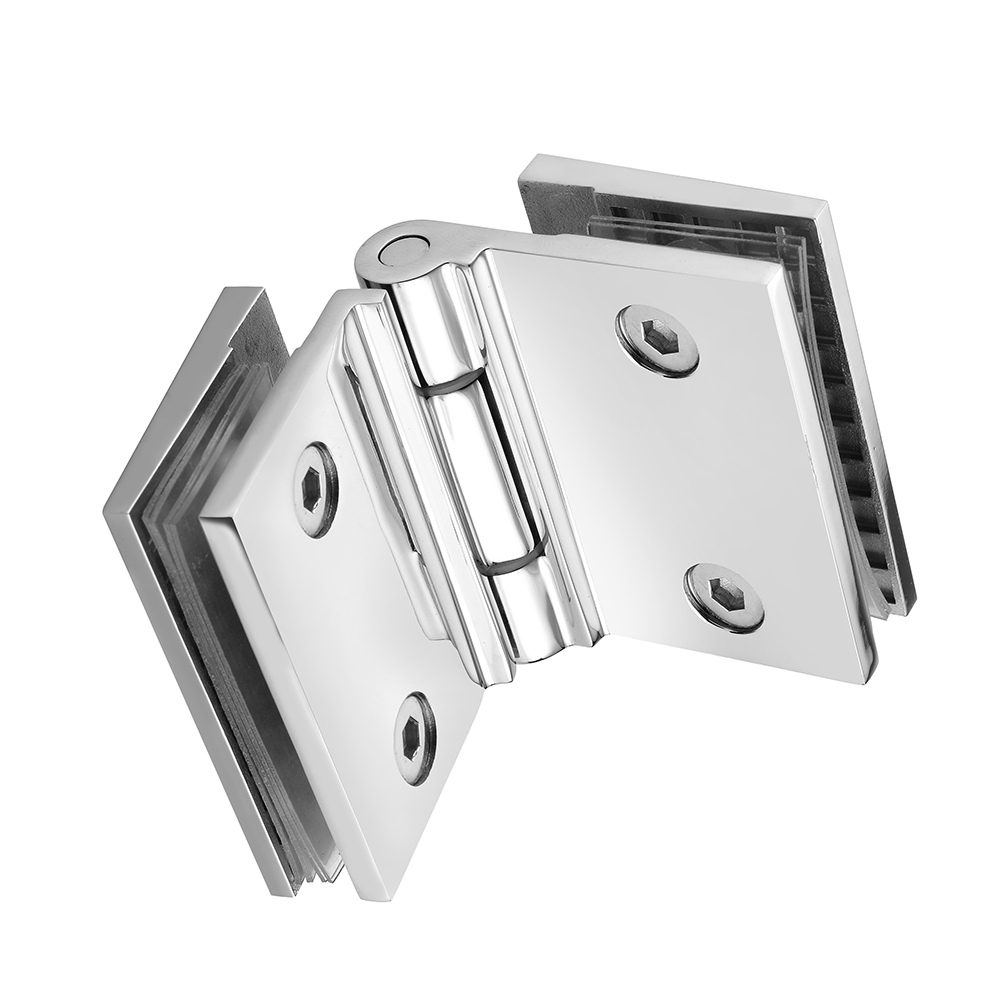

UM3079 G-G 180° Glass door free hinge

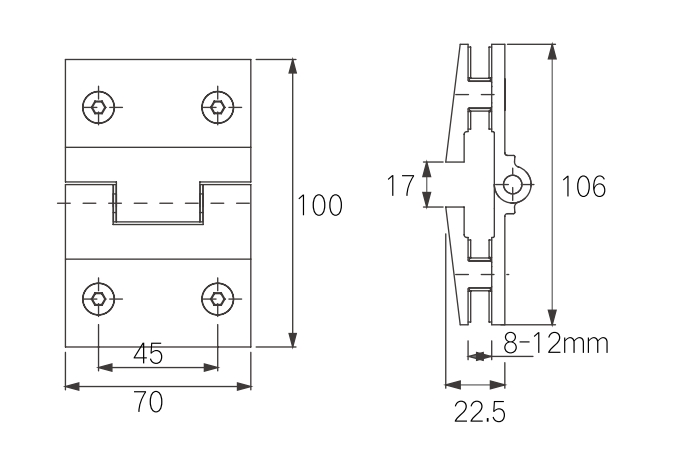

UM3079 Production Dimension
